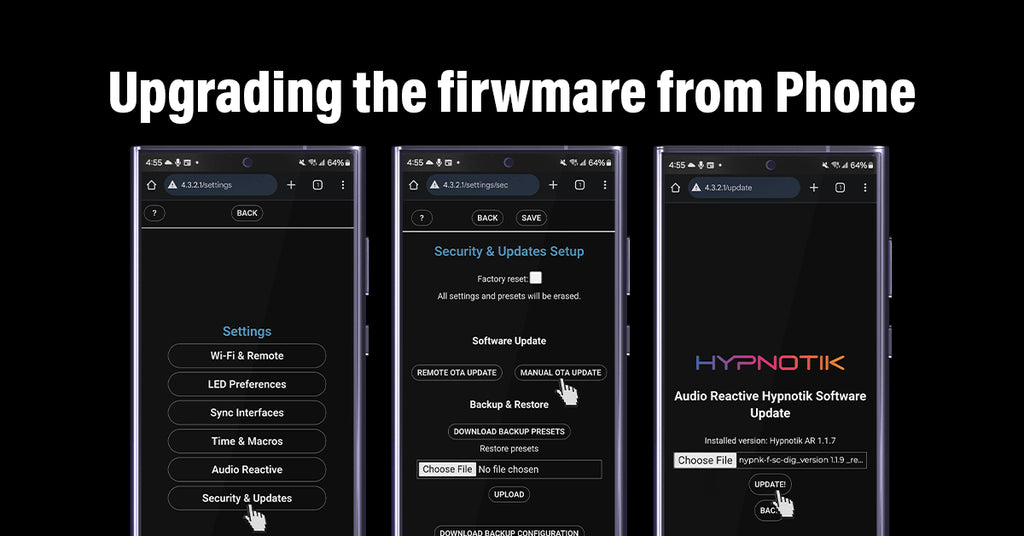

Firmware Upgrade via AP Mode (Android Device)

Table of contents

  1. Download the latest binary
  2. Connect to Hypnotik AP
  3. Open Chrome and Access Captive Portal
  4. Access AP Mode Controls
  5. Access Main Dashboard
  6. Security and Updates
  7. Select Manual OTA
  8. Check Current Version
  9. Load New Firmware
  10. Trigger Upgrade
  11. Update Successful
  12. Reboot & Verification
  13. System Information
  14. Completion

Download the latest binary:

Hypnotik FX V1.1.9 Build 32

Version : 1.1.9

Build : 32

Build Date : 2025-05-30T10:13:59

Type Product Variant Actions
File Icon

HYP-FX-SC-DIG-M-15A
File Icon

HYP-FX-SC-5-IN-1-15A
File Details

Connect to Hypnotik AP

Connect your Windows PC to the Wi-Fi Access Point generated by the Hypnotik FX device (Network Name: HYPNOTIK-XXXX)

Open Chrome and Access Captive Portal

Once connected, open Google Chrome or relavent browser and enter 4.3.2.1 to open the Hypnotik FX Home page.

Access AP Mode Controls

On the landing page, click the "LED STRIP CONTROLS" button under the AP Mode section to proceed.

Access Main Dashboard

Once the Main Dashboard loads, navigate to the Settings menu via main menu as shown in the picture.

Security and Updates

Select the Security and Updates tab to access the firmware upgrade interface.

Select Manual OTA

Choose the Manual OTA option to begin the manual firmware upgrade process.

Check Current Version

Make a note of the current firmware version displayed on the screen.

Load New Firmware

Click Choose File and select the new binary file you previously downloaded to your computer.

The downloaded file usually stored at downloads directory in the phone.

Select the right type and versioned firmware file.

Trigger Upgrade

Once the binary file is loaded, click the "UPDATE!" button.

The update has started. Important: Do not close the browser tab or disconnect the device during this process.

Update Successful

The firmware upgrade is complete. Please wait a moment while the device automatically reboots.

Reboot & Verification

After reboot the android device can disconnect from the HYPNOTIK-XXXX WiFi network. Please reconnect to the same network and reload the page in the browser. The same landing page appears.

System Information

Go to the Info page to confirm that the new firmware version is listed correctly. LED STRIP CONTROLS → Menu → Info → System Info

Completion

Congratulations! The firmware upgrade was successful. Your controller is now updated and ready for optimal performance.
